Heavy Duty Die Springs UK: The Engineer’s Guide to ISO 10243 Standards

Frequent spring failure in high-cycle environments is a primary driver of costly machine downtime. This challenge is often compounded by inconsistent load ratings between manufacturers and the extended lead times associated with overseas suppliers. For engineers responsible for precision tooling, sourcing dependable heavy duty die springs UK that perform predictably is a critical operational requirement. This guide provides the technical clarity needed to navigate these complexities and specify components with confidence.

We will systematically deconstruct the ISO 10243 standard, the international benchmark for die spring manufacturing and performance. You will master the essential parameters for selection, from material specifications and load-rating colour codes to precise force calculation and fatigue life prediction. The objective is to equip you with the expertise to specify the correct die spring for any application, ensuring maximum tool longevity, minimising operational interruptions, and securing a reliable UK-based supply chain.

What are Heavy Duty Die Springs? Defining ISO 10243 Excellence

Heavy duty die springs are a specialized category of high-force compression springs engineered to perform reliably in high-stress, high-cycle industrial environments. Unlike standard round-wire springs, they are manufactured from rectangular or trapezoidal chrome-alloy steel wire. This unique cross-section allows for greater energy storage within a compact physical space, a critical requirement in modern tooling. The fundamental principles of their operation are rooted in the physics of all mechanical springs, but their construction is optimized for extreme load-bearing capacity. Core applications include metal stamping presses, plastic injection moulding dies, and other heavy industrial machinery where consistent force and durability are paramount.

For UK manufacturers and engineers, the ISO 10243 standard provides an essential framework for quality and interchangeability. This international standard defines dimensions, tolerances, and colour-coding for different load ratings, ensuring that a spring from one supplier can be reliably replaced with another. Adherence to ISO 10243 guarantees performance consistency and simplifies the specification process.

Standard vs. Heavy Duty: When to Upgrade

Standard compression springs often fail prematurely in high-cycle tooling due to material fatigue. Heavy duty die springs are specifically designed to handle significantly higher loads within a smaller footprint, offering a direct upgrade path. The "heavy duty" designation signifies a component engineered for superior fatigue life and predictable performance under constant stress, which directly enhances the operational safety and efficiency of the machinery it serves.

Key Technical Terminology for UK Engineers

Correctly specifying heavy duty die springs UK requires a precise understanding of core technical terms. This ensures proper fit, function, and longevity within your assembly.

• Hole Diameter (Dh) and Rod Diameter (Dd): These define the operational space. Dh is the minimum diameter of the hole the spring will fit into, while Dd is the maximum diameter of the guide rod it will fit over.
• Free Length (Lo): This is the overall length of the spring in its uncompressed, at-rest state. It is a critical measurement for calculating the spring's potential travel and pre-load.
• Spring Rate (R): Also known as stiffness, this is the amount of force (in Newtons) required to compress the spring by one millimetre (N/mm). The spring rate is essential for calculating the force exerted at a specific deflection.

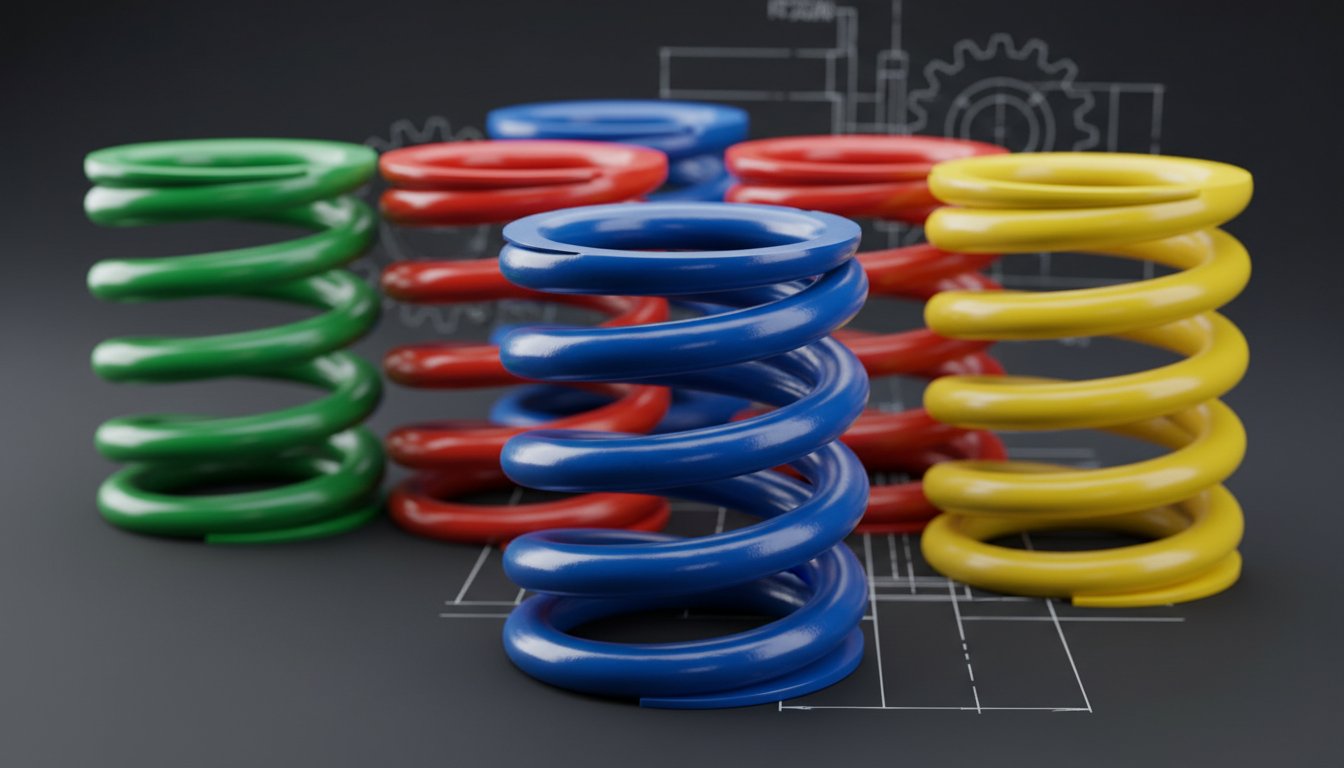

Understanding ISO 10243 Colour Coding and Load Ratings

In high-stress industrial environments, standardisation is not a matter of convenience; it is a prerequisite for safety and operational efficiency. The classification of die springs is governed by the internationally recognised ISO 10243:2019 standard, which establishes a universal colour-coding system to denote specific load ratings. This system allows engineers, toolmakers, and maintenance technicians to instantly identify a spring's intended application and force capacity, mitigating the risk of incorrect installation and subsequent equipment failure.

This immediate visual identification is critical on the factory floor. Selecting an incorrect spring can lead to premature wear, die damage, or catastrophic failure under load, resulting in costly downtime and significant safety hazards. The distinct colours-Green, Blue, Red, and Yellow-provide an unambiguous, at-a-glance reference to a spring's performance characteristics. At SpringXpert Ltd, we guarantee that every die spring we supply adheres strictly to these ISO classifications, ensuring both colour consistency and precise load tolerance for dependable performance in your machinery.

The Load Spectrum: From Light to Extra Heavy

The ISO 10243 standard outlines four primary load classifications, each suited for different levels of force and deflection requirements. Understanding this spectrum is fundamental to correct component specification.

• Green (Light Load): Designed for applications requiring high deflection with lower force. These springs are typically used in scenarios where maximum travel is more critical than high pressure.
• Blue (Medium Load): Often considered the "workhorse" of the toolmaking industry, Blue springs offer a balanced profile of force and travel, making them suitable for a wide range of general-purpose stamping and moulding applications.
• Red (Heavy Load): Engineered for high-stress operations, Red springs provide significant force with reduced deflection. They are critical for high-pressure stamping, forming, and punching tasks where maximum force is paramount.

Extra Heavy Duty Yellow Die Springs

At the top of the load spectrum are the Yellow die springs, designated for extra heavy duty applications. Manufactured from high-tensile chrome-alloy steels, these components are engineered to withstand extreme compressive forces. Their primary use cases are found in the most demanding sectors, such as automotive panel stamping and heavy manufacturing, where immense pressure is required to form or cut thick materials. When sourcing these specialist heavy duty die springs UK manufacturers rely on components that meet exact specifications.

Due to their high spring rate, calculating the maximum safe deflection for Yellow springs is critical. Exceeding the recommended travel can induce a permanent set, compromising the spring's integrity and performance. Our technical team can assist in calculating these precise parameters to ensure longevity and prevent failure in your high-load applications.

Material Science: Why Chrome Vanadium (CrVan) Defines Quality

The performance and longevity of a heavy-duty die spring are fundamentally determined by its material composition and manufacturing process. For demanding industrial applications, the material of choice is high-grade chrome vanadium (CrVan) alloy steel. This alloy's chemical structure, which includes chromium for improved hardenability and vanadium for fine grain structure and toughness, provides the necessary tensile strength and resilience required for high-stress, cyclical loading.

Beyond the raw alloy, the manufacturing process imparts critical performance characteristics. At SpringXpert, our process includes:

• Shot Peening: This cold working process induces a layer of compressive residual stress on the spring's surface, significantly increasing resistance to metal fatigue and stress corrosion cracking.
• Stress Relieving: A controlled heat treatment post-coiling removes internal stresses, stabilising the spring's dimensions and mechanical properties.
• Presetting: Each spring is compressed to its solid height, which sets its free length and ensures it will not lose height in service.

The use of a rectangular wire profile is another critical design choice. Compared to round wire, a rectangular profile allows for more efficient use of space within a die set, delivering a higher spring force from a more compact design. This maximises the work per unit volume, a key requirement in tool and die engineering.

Heat Resistance and Environmental Factors

Standard ISO-compliant heavy duty die springs UK engineers rely on are typically designed to operate at temperatures up to 230°C. Exceeding this thermal limit can lead to material relaxation, resulting in permanent load loss and a reduced spring rate. To combat environmental degradation, our springs are finished with an electrostatic powder coating. This finish not only provides robust corrosion protection but also serves as the critical colour-coding system for load ratings, as defined by the BS ISO 10243:2019 standards.

Fatigue Life and Cycle Counting

A spring's operational lifespan is directly correlated to its working deflection. A lower percentage of deflection relative to its maximum travel results in a logarithmically longer cycle life. For critical applications, SpringXpert engineers can design for "infinite life," typically defined as exceeding 10 million cycles, by carefully managing stress levels and operating deflection. The predictable stress concentration points on rectangular wire allow our engineers to accurately model fatigue behaviour and specify operational limits that ensure reliability and prevent premature failure in the field.

Specifying and Installing Die Springs for Maximum Service Life

The operational longevity of a die spring is not solely determined by its material quality but is fundamentally linked to correct specification, installation, and maintenance. Adhering to established engineering principles is critical for maximising the service life of your components. Best practices for installation include ensuring the spring is properly guided on a rod or in a pocket to prevent buckling under load. The spring ends must also be seated against flat, parallel surfaces to distribute force evenly across the coil.

A primary cause of premature failure is exceeding the recommended deflection. The "Golden Rule" for die springs dictates that maximum working travel should not exceed 25-30% of the free length for heavy-duty applications. Pushing a spring beyond this limit induces excessive stress, leading to fatigue and a drastically reduced cycle life. Regular maintenance, including inspection for signs of wear, misalignment, and contamination from debris, is essential for maintaining operational integrity.

Calculating the Correct Pre-load

Applying an initial pre-load is necessary to prevent spring "shuffling" and premature wear, particularly in high-speed stamping operations. This initial compression ensures the spring remains seated and stable throughout the cycle. Pre-load is typically calculated as a percentage of the total available travel, sufficient to counteract the static weight of the moving tool components. Insufficient pre-load can cause impact loading and shock, which compromises the performance of even the most robust heavy duty die springs UK manufacturers supply.

Troubleshooting Premature Spring Failure

When a spring fails before its expected cycle life, it often indicates a systemic issue rather than a component defect. Identifying the root cause is key to preventing repeat failures. Common indicators include:

• Coil Clashing: Polished or flattened areas on the inside or outside diameter of the coil, indicating contact during compression due to buckling or over-deflection.
• Uneven Loading: Visible wear on one side of the spring, suggesting misalignment within the die set. This concentrates stress on a small area, leading to rapid fatigue.
• Permanent Set: The spring fails to return to its original free length after a load is removed, a clear sign of being stressed beyond its elastic limit.

If stock replacements continue to fail, it signifies a potential mismatch between the spring and the application's demands. In these situations, it is more effective to consult an Xpert for a bespoke design than to continue replacing a standard part. A custom-engineered solution can address underlying issues in tool design and deliver reliable, long-term performance.

Sourcing Heavy Duty Die Springs in the UK: The SpringXpert Advantage

Selecting the right supplier is as critical as selecting the right component. A UK-based supply chain provides significant operational advantages, from reduced lead times to direct access to engineering support. At SpringXpert, our Redditch facility in the West Midlands represents over two decades of manufacturing heritage, positioning us as a premier source for heavy duty die springs UK manufacturers can depend on. We combine this local presence with a deep commitment to quality and technical precision.

Our operations are underpinned by internationally recognised standards. SpringXpert is ISO 9001 certified, ensuring that every component, whether standard or bespoke, adheres to a documented quality management system. This certification is supported by rigorous in-house testing protocols, including:

• Cycle life analysis
• Load verification testing
• Material composition analysis

These measures guarantee that our springs perform reliably under the most demanding industrial conditions, providing the durability your application requires.

From CAD to Component: Our Technical Partnership

When standard ISO specifications do not meet your unique load requirements, our engineering team provides direct technical collaboration. We assist clients from the initial design phase, using CAD models and load simulation to validate performance before production. For one UK manufacturing client experiencing high failure rates, we engineered a bespoke die spring that extended component life by 300%, significantly improving their machine uptime and reducing maintenance costs.

Procurement and Trade Accounts

We provide streamlined procurement solutions for large-scale operations and urgent requirements. Our trade accounts simplify bulk ordering, ensuring a consistent supply for your production lines. For standard ISO 10243 components, we offer next-day delivery options to minimise downtime and keep your projects on schedule. Our system is designed for industrial efficiency, from initial order to final delivery. Partner with SpringXpert for your next industrial project.

Sourcing ISO 10243 Die Springs with Confidence

Adherence to the ISO 10243 standard is a fundamental requirement for ensuring the operational safety, reliability, and extended service life of components in high-stress applications. As detailed, correct load rating identification via the standardised colour-coding system, combined with the superior material properties of Chrome Vanadium (CrVan) steel, forms the basis of a robust and predictable system. Proper specification and installation are the final critical steps to maximising performance and preventing premature failure.

For engineers and procurement managers seeking a dependable supply of heavy duty die springs UK, partnering with an established specialist is paramount. With over 20 years of industrial engineering expertise and ISO 9001 certified manufacturing at our Redditch facility, SpringXpert provides the technical authority your projects demand. Our extensive stock of over 20,000 standard products ensures immediate dispatch for your critical components.

To specify your components with precision, browse our full range of ISO 10243 Heavy Duty Die Springs or contact our technical team to engineer the optimal solution for your application.

Frequently Asked Questions About Heavy-Duty Die Springs

What is the difference between ISO 10243 and other die spring standards?

ISO 10243 is the international standard governing the dimensions, load ratings, and colour-coding for die springs. Its primary function is to ensure interchangeability and predictable performance regardless of the manufacturer. Other regional standards, such as JIS (Japanese) or NAAMS (North American), specify different physical dimensions and load characteristics. Adherence to the ISO 10243 standard provides a reliable benchmark for engineers specifying springs for tooling across global supply chains.

How do I calculate the spring rate needed for my die set?

The required spring rate (k) is calculated by dividing the necessary force (F) by the required spring deflection or travel (d). The formula is k = F/d. First, determine the total force your operation requires and the distance the springs must compress. This calculation yields the necessary spring rate. You can then select the appropriate number and type of springs to achieve this rate, ensuring balanced load distribution and optimal performance within your die set.

Can die springs be used in applications other than tool and die sets?

Yes. Although engineered for the high-cycle, high-stress environments of press tools and dies, their robust construction makes them highly effective in other demanding industrial applications. Their high force-to-size ratio is advantageous in machinery clutches, industrial brakes, valve actuators, and heavy-duty counterbalancing mechanisms. Any application requiring reliable, high-load compression in a compact space can benefit from the durability of a die spring.

Why are die springs colour-coded, and is the code universal?

Die springs are colour-coded to allow for rapid visual identification of their duty rating (e.g., light, medium, heavy, extra-heavy). This system minimises the risk of incorrect installation and ensures the specified force is applied. While the ISO 10243 colour scheme is widely recognised in the UK and Europe, it is not globally universal. Standards from North America and Asia use different colour systems. It is critical to confirm the specification standard, not just the colour, when sourcing or replacing springs.

What is the maximum operating temperature for a heavy-duty die spring?

For standard heavy-duty die springs manufactured from chrome-vanadium alloy steel, the maximum recommended continuous operating temperature is approximately 230°C. Operation above this threshold can cause the material to lose its temper, resulting in a permanent reduction in load-bearing capacity and a significantly shortened service life. For applications exceeding this temperature, custom springs made from specialised high-temperature alloys are required. Please consult our engineers for material specification.

How does shot peening improve the life of a heavy-duty spring?

Shot peening is a surface treatment process that induces a layer of compressive residual stress on the spring wire. This engineered compressive stress counteracts the harmful tensile stresses that develop on the surface when the spring is deflected. As fatigue cracks initiate under tensile stress, this process significantly enhances resistance to fatigue failure. The result is a substantial increase in the operational cycle life and overall durability of the spring, especially in high-frequency applications.

Is it better to use many light springs or a few heavy-duty springs in a tool?

The optimal configuration is determined by the application's specific requirements for force distribution and available space. Employing numerous lighter springs can distribute the load more evenly across a die plate, which is often crucial for precision forming operations. Conversely, using a smaller number of heavy-duty springs is a more compact and mechanically simpler solution. The primary engineering goal is to achieve a balanced load without over-stressing any single spring to maximise tool longevity.

What are the lead times for custom-manufactured die springs in the UK?

Lead times for custom-manufactured die springs are dependent on material availability, design complexity, and our current production schedule. Typically, standard bespoke orders are fulfilled within 2-3 weeks. Projects requiring non-standard alloys or specialised secondary processes may have extended timelines. As a trusted supplier of the heavy duty die springs UK industry depends on, we provide a precise delivery forecast upon review of your technical drawings and specifications.
