Feeling the weight of heavy loads and high stress in your applications? Look no further than die springs! These remarkable springs are specially crafted to tackle even the toughest challenges, thanks to their rectangular wire section. Not only can they withstand immense pressure, but they also boast impressive resistance against high temperatures. In this blog post we will answer your most asked questions about die springs, exploring their unique design and unrivalled durability.

What is the difference between a spring and a die spring?

Springs and die springs may seem similar at first glance, but there are some key differences between the two. While both serve the purpose of storing and releasing energy, die springs are specifically designed to withstand heavy loads and high stress.

A regular spring is a generic term that encompasses various types of springs used in different applications. These can include compression springs, extension springs, torsion springs, and more. They come in a wide range of sizes and designs to suit diverse needs.

On the other hand, a die spring is a type of compression spring specifically engineered for use in heavy load and high stress applications. Die Springs are commonly employed in metal stamping operations in die sets but are also used in agriculture, aerospace, oil and gas industry and many more applications. Die springs provide consistent pressure throughout repetitive cycles while enduring tremendous force.

The main difference lies in their construction and intended use. Regular springs are generally used for lighter applications with lower stress levels compared to die springs which require exceptional durability under extreme conditions.

Is a die spring a compression spring?

Is a die spring a compression spring? This is a common question that arises when discussing die springs. The answer is yes, a die spring is indeed a type of compression spring.

As part of the compression spring family, these products are made to withstand applied stress. However, unlike other compression springs, die springs are made from rectangular wire and designed to handle considerable pressure. As a result, they can take a higher load (around 30% more) and are resistant to high temperatures, as they continue to function well up to 475oC.

The use of rectangular wire makes all the difference since it boosts the efficiency of the spring by allowing it to store more energy in a smaller space when compared to traditional springs.

Die springs have unique characteristics that make them ideal for applications where high load-bearing capacity and long lifespan are required. They are typically made from high-quality alloy steel and undergo rigorous manufacturing processes to ensure durability and reliability.

One notable difference between die springs and conventional compression springs is their colour coding system. Die springs are often colour-coded based on their load capacities, allowing users to easily identify the appropriate strength for their specific needs.

When choosing die springs, it's important to consider factors such as the required load capacity, working environment conditions, stroke length, and space limitations. It's advisable to consult with an expert or refer to manufacturer guidelines for proper selection.

In terms of manufacturing, die springs can be produced using various methods including hot coiling or cold winding techniques. The choice of method depends on factors such as material properties and desired specifications.

While stacking multiple die springs may seem like an option for increasing load capacity or achieving specific deflection characteristics, it generally isn't recommended due to potential issues with uneven stress distribution among the stacked components.

Understanding the distinction between die springs and compression springs can help you make informed decisions when selecting suitable components for your application needs.

What is the colour code for die springs?

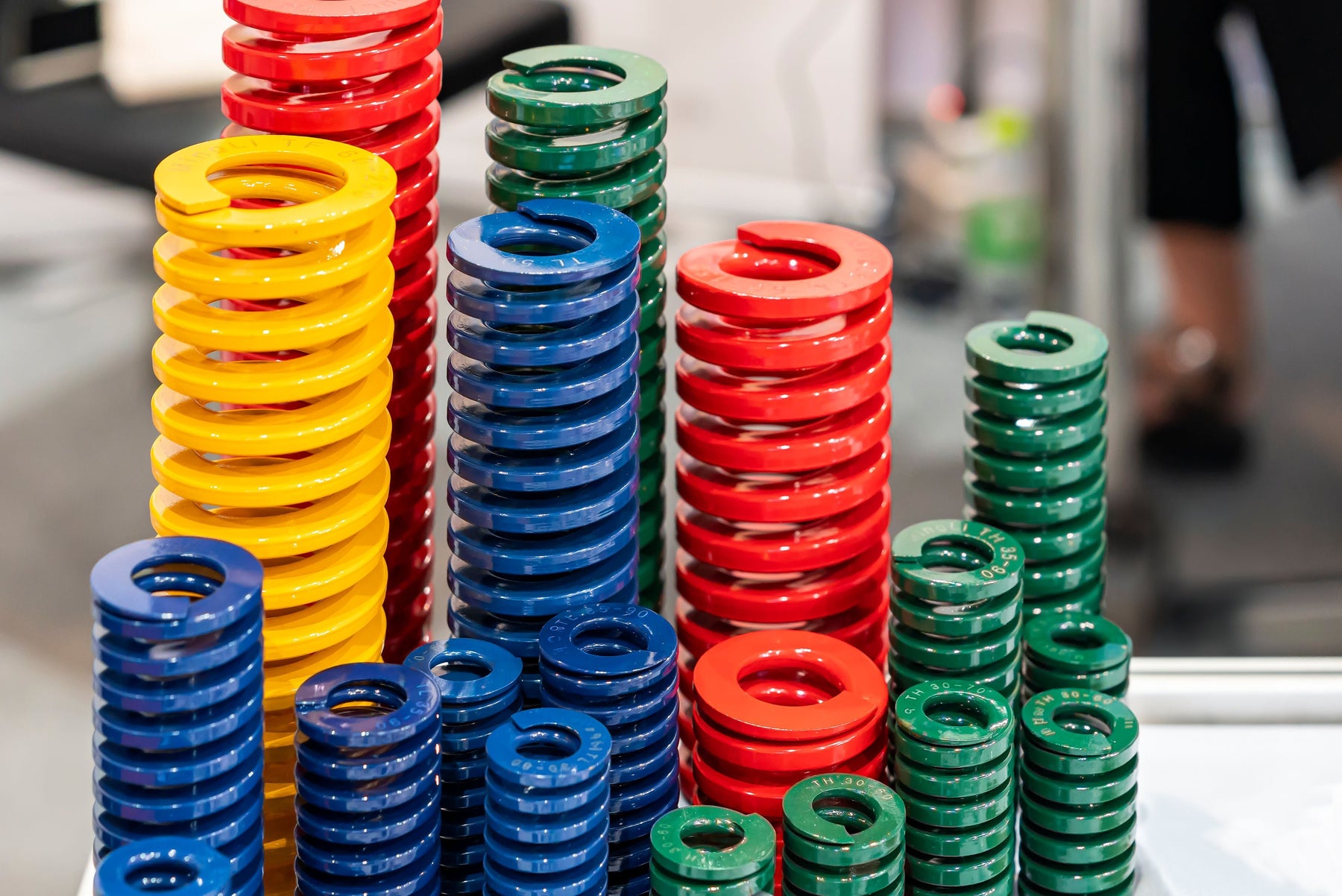

Die springs are commonly used in various applications, including heavy-duty stamping and metalworking. One unique feature of die springs is their colour coding system, which helps users quickly identify the load capacity or strength of a particular spring.

The colour code for die springs consists of four different colours:  yellow, red, blue, and green. Each colour represents a specific load range or strength level. This makes it easier for manufacturers and end-users to select the appropriate die spring for their specific needs.

Yellow-coloured die springs indicate the extra heavy load capacity or maximum strength. These springs are designed to withstand heavy loads and provide reliable performance in demanding applications.

Red-coloured die springs indicate the heavy load capacity they have a lower load capacity than yellow ones but still offer substantial strength.

Blue-coloured die springs fall into the medium-load range category. They provide a balanced combination of strength and flexibility suitable for many industrial applications.

Green-coloured die springs represent low-load capacities or light-duty applications where minimal force is required.

By understanding this colour coding system, users can easily determine which die spring is best suited for their intended application without needing to rely on complex specifications charts or technical documentation.

What are the benefits of using die springs?

  • Excellent performance in high-stress settings

  • Resistance to high temperatures

  • Available in several materials, including steel and chromium alloys

  • Variety of designs and sizes

  • Handle higher loads when compared to other compression springs

  • Resistant to wear and tear

  • Have a great degree of flexibility when it comes to their applications

  • Perfect for heavy-duty environments

  • Increased fatigue life

  • Reliable load-bearing surface

  • Consistency when it comes to dimensional requirements

How do I choose die springs?

Choosing the right die springs for your application is crucial to ensure optimal performance and longevity. Here are some factors you need to consider when selecting die springs:

1. Load Requirements: Determine the maximum load or force that the spring needs to handle. This will help you choose the appropriate spring rate, which is a measure of how much force is required to compress the spring.

2. Operating Conditions: Consider the temperature and environment in which the die springs will be used. Some materials may be more suitable for high-temperature applications, while others may offer better corrosion resistance.

3. Spring Size: Take into account the space limitations within your die setup. Measure carefully to ensure that the selected springs fit properly without binding or buckling under compression.

4. Cycle Life Expectancy: Evaluate how frequently the die will be used and estimate its expected lifespan. Choose a die spring with sufficient cycle life to minimize downtime and maintenance costs.

5. Quality and Reliability: Select reputable manufacturers or suppliers who offer high-quality die springs that meet industry standards such as ISO 10243.

By considering these factors, you can make an informed decision when choosing die springs that best suit your specific application requirements.

How are die springs made?

Die springs are made using a specific manufacturing process that involves precision and expertise. The first step in making die springs is selecting the appropriate type of steel wire. High-quality alloy steel is commonly used due to its strength and durability.

Once the steel wire is chosen, it undergoes a series of processes to transform it into a die spring. One important step is coiling the wire into the desired shape and size. This is typically done using specialized machinery that ensures consistency and accuracy.

After coiling, the die springs go through heat treatment to enhance their mechanical properties. Heat treatment involves subjecting the springs to high temperatures followed by controlled cooling, which increases their strength and resilience.

Next, the springs are carefully inspected for any defects or imperfections. Quality control measures ensure that only flawless die springs move forward in the production process.

Once they pass inspection, die springs may be coated with a protective finish such as powder coating. This helps prevent corrosion and prolongs their lifespan when used in various applications.

Can you stack die springs?

Yes, it is possible to stack die springs. Stacking refers to the practice of placing multiple springs on top of each other in order to achieve a desired load or height. This technique can be useful when the available die spring sizes do not meet specific requirements.

When stacking die springs, it's important to consider several factors. First and foremost, compatibility between the different springs is crucial. The stacked springs should have similar dimensions and characteristics in terms of wire diameter and outer diameter.

Furthermore, proper alignment and seating are essential for ensuring optimal performance when using stacked die springs. It's important to ensure that each spring is aligned correctly within the assembly and securely seated against any supporting components.

While stacking can provide added flexibility in achieving custom load or height requirements, there are limitations to be aware of. Excessive stacking may lead to reduced performance or premature failure due to increased stresses on individual coils.

It's always recommended to consult with a knowledgeable supplier or engineer when considering the use of stacked die springs. They can provide guidance on selecting appropriate combinations and offer insights into potential challenges that may arise from this practice.

While stacking die springs can offer versatility in certain applications, careful consideration must be given to ensure compatibility and proper installation for optimal performance and longevity.
