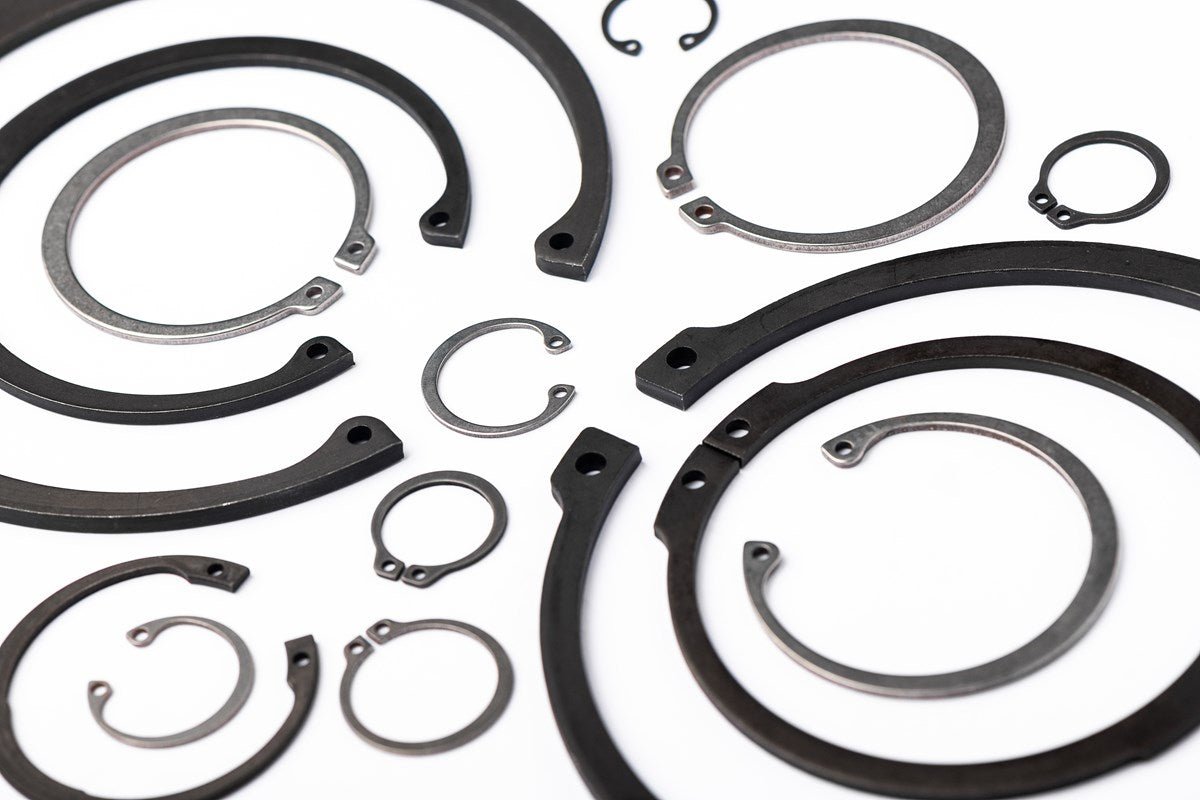

How to Choose the Right Circlip (DIN 471 vs DIN 472 vs E-Clip DIN 6799)

Circlips and retaining rings are small components that prevent big problems. Choose the wrong style or size and you can end up with axial movement, premature wear, assembly headaches or a ring that simply will not seat.

This guide covers the three questions that matter most:

1. Is it internal or external?

2. Which standard suits the job?

3. How do I measure it properly so it fits first time?

SpringXpert carries a broad standard range across springs and fasteners, including circlips and retaining rings manufactured to widely used standards.

1) Internal vs external: decide where the groove is

Start with the groove location:

• External circlip: fits into a groove on a shaft and retains components on the outside diameter.

• Internal circlip: fits into a groove inside a bore and retains components within a housing.

If you are buying by standard, this usually maps to:

• DIN 471 for external circlips (shafts)

• DIN 472 for internal circlips (bores)

SpringXpert’s retaining ring range is structured around these common applications and standards.

2) Pick the right standard and style for access and loads

DIN 471 external circlips (shafts)

Choose DIN 471 when you have a shaft groove and you want a proven, widely available solution. It is a staple in general engineering, maintenance, automotive and manufacturing.

Best for:

• Straightforward axial retention on shafts

• Repeatable assembly and serviceability

Where to buy:

• SpringXpert’s circlip and retaining ring range is grouped for quick selection by type and standard.

DIN 472 internal circlips (bores)

Choose DIN 472 when the groove is inside a housing or bore. SpringXpert’s DIN 472 internal circlip product page highlights the design intent for bores and notes availability across a wide size range, with data sheet access for checking details.

Best for:

• Retention inside gear housings, bearings, assemblies and bore-mounted components

• Jobs where the housing provides protection and alignment

A practical note: internal rings can feel fiddlier because access is tighter. If you are struggling, check plier access and groove cleanliness before blaming the ring.

E-type circlips (DIN 6799) when side-fitting is easier

E-clips are often chosen when axial fitting is awkward but side access is good. SpringXpert’s DIN 6799 E-type circlips are described as widely used radial retaining rings with three prongs contacting the bottom of the groove to provide a shoulder for retention.

Best for:

• Assemblies where you can push the ring on from the side

• Faster fitting in production, when the groove design suits

Increased abutment types (DIN 983 and DIN 984) for more demanding retention

If the application needs enhanced axial retention or you are working with more demanding conditions, increased abutment variants can be appropriate. SpringXpert stocks both DIN 983 external and DIN 984 internal variants.

Best for:

• Heavier-duty retention requirements

• Applications where extra security is preferred

3) How to size a circlip properly (so it fits first time)

Most sizing issues come down to one of these mistakes:

• measuring the wrong diameter

• confusing shaft size with groove diameter

• ignoring groove width or thickness

For external circlips (shafts)

You typically start from the shaft diameter. Then confirm:

• groove diameter (at the groove)

• groove width

• ring thickness

For internal circlips (bores)

You typically start from the bore diameter. Then confirm:

• groove diameter (in the bore)

• groove width

• ring thickness

If you are ordering to DIN standard and your groove is to the same standard, life is straightforward. If the groove is non-standard, treat the DIN reference as a starting point and verify the geometry.

SpringXpert provides data sheet access on key circlip pages, which is exactly what you want for proper checking before you buy.

4) Material choice: carbon steel vs stainless steel

Material choice is usually driven by environment:

• Carbon steel is common for general use and is often finished for corrosion resistance (for example phosphate and oil on certain ranges).

• Stainless steel is worth considering for moisture, washdown, coastal environments and chemical exposure

If the assembly lives in a harsh environment, buying the right material once is cheaper than repeated replacements.

5) Fitting tips that prevent 90 percent of failures

A circlip can only do its job if it is seated correctly.

Before fitting:

• clean the groove fully, including any burrs

• check the groove edges for damage

• confirm you have the right pliers size and tip fit

During fitting:

• do not over-expand an external circlip or over-compress an internal circlip

• seat the ring fully and then rotate it slightly to confirm it is properly located

After fitting:

• visually confirm the ring is flat in the groove

• check that the retained component has minimal axial movement, as intended

If you are assembling at volume, these steps reduce rework dramatically.

6) When to buy standard, when to ask for bespoke

If you are replacing a known part, standard is usually quickest. SpringXpert positions itself around a large standard range as well as bespoke engineered products, so you can source both from one supplier.

Go standard when:

• you are matching an existing DIN / ANSI / JIS spec

• the groove is conventional

• you want fast, repeatable purchasing

Ask about bespoke when:

• the groove geometry is unusual

• retention needs are exceptional

• you are designing a new assembly and want guidance on manufacturability

7) Buying guide: the quick decision checklist

Use this before you add to basket:

1. Groove is on a shaft or in a bore

2. Choose the family:

   • shaft: DIN 471 (or DIN 983 if increased abutment suits)

   • bore: DIN 472 (or DIN 984 if increased abutment suits)

   • side-fit: E-clip DIN 6799

3. Confirm size against the correct diameter and groove width

4. Choose material for the environment

5. If in doubt, use the data sheet and ask, especially on larger sizes
